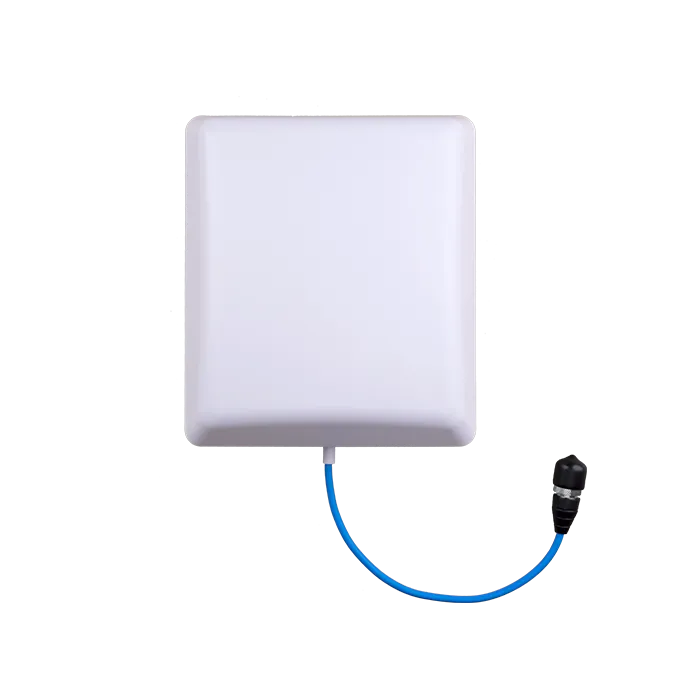

7 dBi Directional Panel Antenna
7 dBi Directional Panel Antenna
| Electrical Specifications | ||
| Frequency Range | 698-960 MHz | 1710-2700 MHz |
| Gain | 7 dBi | 8 dBi |
| VSWR | ≤1.8 | ≤1.5 |
| Polarization | Vertical | |
| Front to Back Ratio | ≥15 dB | |
| Horizontal Beamwidth | 65° | |
| Vertical Beamwidth | 55° | |
| Input Impedance | 50 Ω | |
| Max.Power | 50 W | |
| Lightning Protection | DC Ground | |
| Mechanical Specifications | ||
| Connector | N-Female | |
| Dimensions | 210×180×43 mm | |
| Packing Size | 240×200×70 mm | |
| Weight | 0.5 kg | |
| Reflector Material | Aluminum | |
| Radome Material | ABS | |
| Rated Wind Velocity | 210 km/h | |
| Operating Temperature | -40°C to +65 °C | |
| Mounting Pole | Ø38-Ø52 mm | |
