DC-6GHz 2W Continuously Variable Attenuator SMA-Female Connector
DC-6GHz 2W Continuously Variable Attenuator SMA-Female Connector
Product Name

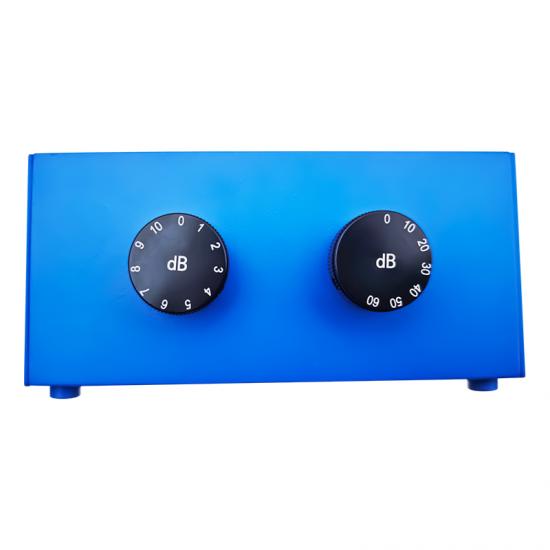

GKTS Series A3 Drum Step Attenuator（DC-6GHz，2W）
Product Feature
Wide Frequency Range: DC to 6 GHz
High-Precision Attenuation: 0 to 70 dB range in 1 dB steps
Low VSWR & Insertion Loss: Ensures minimal signal degradation Robust Construction: Aluminum cavity with gold-plated beryllium copper contacts for long-term reliability Standard Interfaces: SMA Female connectors, 50 Ohm impedance
Technical &Mechanical Specifications
| Model No | GKTS2-2-70-6-A3 |
DC-6GHz | Frequency Range |
| ≤1.8dB | Insertion Loss |
| 2W | Average Power |
| 1.65 | Maximum VSWR |
| DC-6GHz | Attenuation Range |
| 1dB | Attenuation Step |
±0.5dB (≤10dB) ± 0.8dB or 3% (11-69dB) ±3.5% (70dB) | Attenuation Accuracy |
| 100W (5 μs pulse width, 2% duty cycle) | Peak Power |
| SMA (F, F) | Connector Type |
50 Ω | Nominal Impedance |
| Aluminum, Blue Paint | Cavity / Housing |
| -20 °C to +85 °C | Operating Temperature |
| 181.5 × 87.1 × 79 mm | Dimensions (L×W×H) |
Approx. 920g | Weight |
