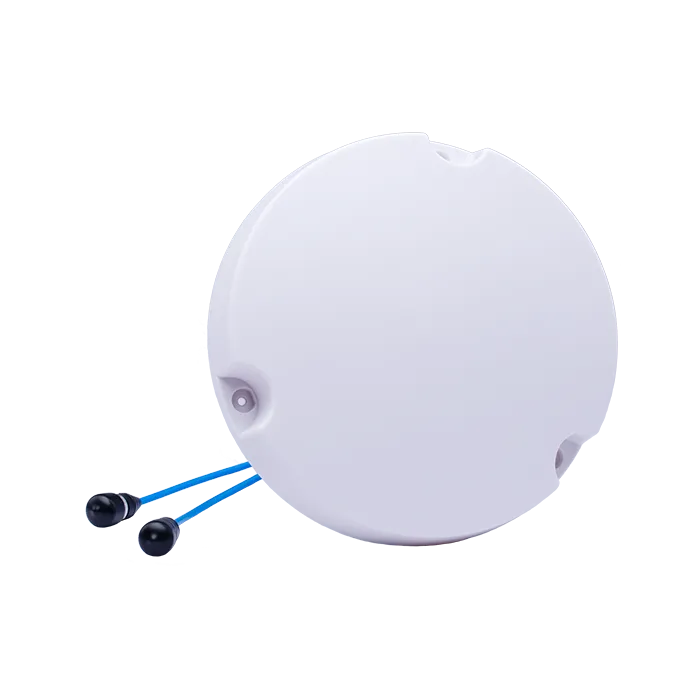

Low PIM MIMO Omni Antenna
Low PIM MIMO Omni Antenna
| Electrical Specifications | |||||||
| Port | Port 1 | Port 2 | |||||
| Frequency Range, MHz | 698-960 | 1710-2170 | 2400-2700 | 698-960 | 1710-2170 | 2400-2700 | |
| Gain, dBi | 3.0 | 4.5 | 3.0 | 4.5 | |||
| VSWR | ≤2.0 | ≤1.8 | ≤2.0 | ≤1.8 | |||
| Polarization | Vertical | Vertical | |||||
| Isolation | >20 dB | >25 dB | >20 dB | >25 dB | |||
| PIM, 3rd Order, 2x20W | ≤-150 dBc | ||||||
| Horizontal Beamwidth | 360° | ||||||
| Vertical Beamwidth | 90° | 55° | |||||
| Input Impedance | 50 Ω | ||||||
| Max.Power | 50 W | ||||||
| Lightning Protection | DC Ground | ||||||
| Mechanical Specifications | |||||||
| Connector | 2xN-female | ||||||
| Dimensions | Ø215×47 mm | ||||||
| Weight | 0.45 kg | ||||||
| Reflector Material | Brass and PCB | ||||||
| Radome Material | ABS (UV Stabilized) | ||||||
| Operating Temperature | -40°C to +65 °C | ||||||
