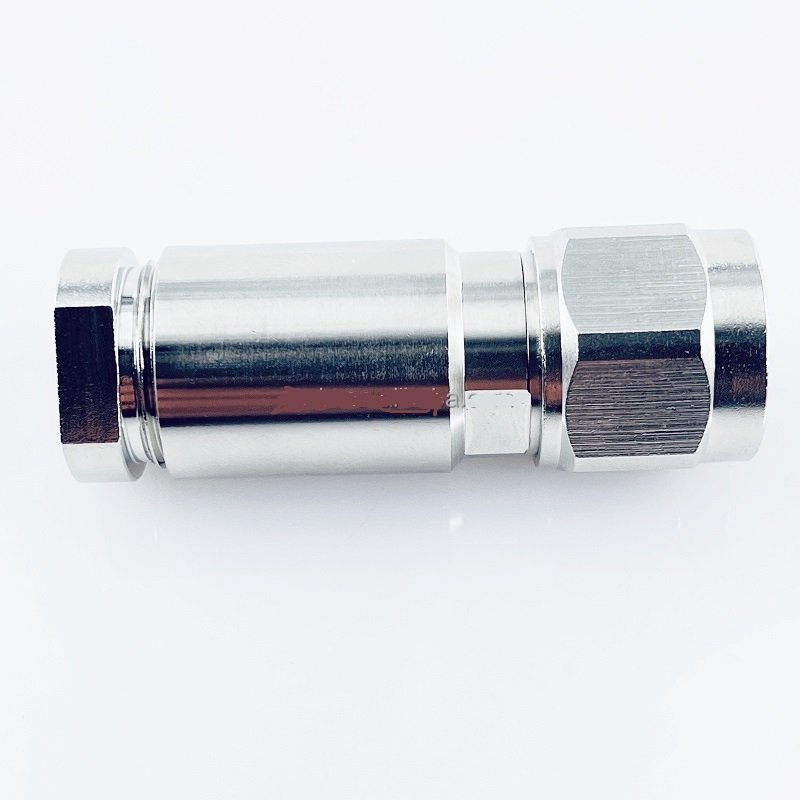

N Male Clamp for RG8 Cable
N Male Clamp for RG8 Cable
 2. Product Description |
| NM-LMR400(RG8) N Male Connector Clamp for |
| 3. Material and Plating |
| Center contact Brass / Silver Plating Outer contact & B Body Brass / Trimetal Plating Dielectric PTFE Gasket Silicon Rubber Nut Brass / Nickel Plating |
| 4. Electrical Characteristics |
| Characteristics Impedance 50 Ohm Frequency Range DC~11GHz Insulation Resistance ≥5000MΩ Center contact resistance ≤1.0 mΩ Outer contact resistance ≤0.25 mΩ Dielectric Strength 2500V rms (DC) Working voltage 900V rms Insertion Loss ≤0.10dB@3GHz VSWR ≤1.2@DC~3.0GHz |
| 5. Environmental and Mechanical Specifications |
| Durability (matings) ≥500 cycles Mechanical Shock Test Method MIL-STD-202, Method 213, Test Vibration Test Method MIL-STD-202, Meth. 204, Cond. B Suitable cables LMR400、RG8、8D-FB |
| Temperature Range -45°C to +85°C RoHS Compliant |
