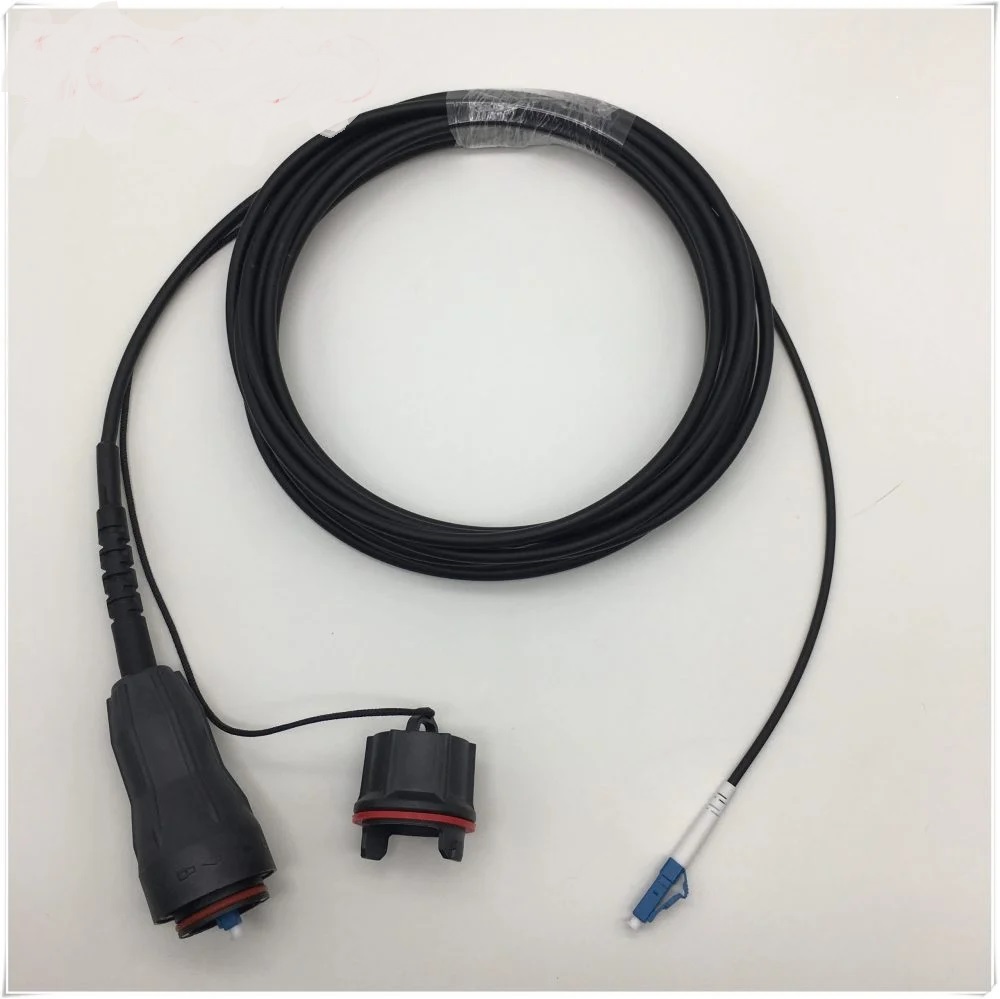

RPM 253 1619/50M RPM 253 1619/100M 1F LC-LC SM Ericsson Cable
RPM 253 1619/50M RPM 253 1619/100M 1F LC-LC SM Ericsson Cable
| Item | Specifications |
| Connector A | FULLAXS Duplex LC, Straight boot |
| Connector B | Duplex LC, Straight boot |
| Grounding cable | Grounding cable on side B, Length 1.2m |
| Fiber amount | 2 cores |
| Fiber type | Single mode 9/125um G.657A1 |
| Optical Cable Attenuation at 1310nm | 0.4dB/km |
| Optical Cable Attenuation at 1550nm | 0.3dB/km |
| IL/Connector | ≤0.3dB IEC 61300-3-4 |
| Return Loss/Connector | >50dB IEC 61300-3-6 |
| Operation Temperature Range | -20-70℃ |
| Storage Temperature Range | -20-85℃ |
| Tensile strength | 350 N maximum |
| Bending radius | 180nm minimum |
| Crush Resistance | 1500 N/100 mm |
| Outer sheath | PE, full cable armored |
| Cable sheath color | Black |
| Cable OD | 5mm +/-0.2mm |
| Fan out | 3.0mm armored tube, Black color |
| Item | Parameter | |
| Single-mode | Multi-mode | |
| Insertion Loss | ≤0.3dB | |
| Return Loss | ≥50 dB (PC), ≥60 dB (APC) | |
| Repeatability | ≤0.1dB | |
| Durability | 0.2dB Max. 1000 mattings | |
| Operating Temperature | -40ºC~+85ºC | |
| Storage Temperature | -40ºC~+85ºC | |
